Windows 8 PPPoE Setup

This page gives you information on how to set up the connection, and precautions for either of the following connection courses.

Asahi Net docomo Hikari 1 Gbps
Asahi Net FTTH with FLET'S
FLET'S Hikari Next
FLET'S Hikari Light

This page gives you information on how to set up the connection for Windows 8 when you are using FLET’S Hikari Next/FLET’S Hikari Light/B FLET’S/FLET’S ADSL.

Before setting up

You can connect to the internet with FLET’S lines using the PPPoE function in Windows 8.
In order to connect with FLET’S line, the line has to be installed, and you have to subscribe to the respective course (course change, new application).

Set up a broadband connection (PPPoE)

STEP1
Windows desktop

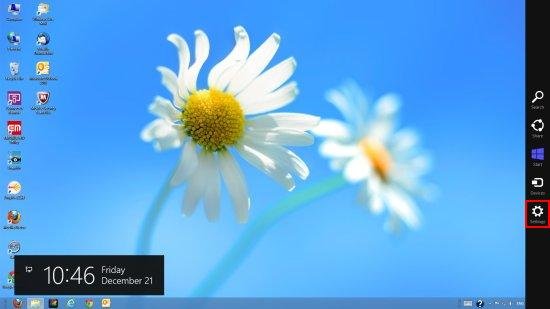

Bring the cursor to the upper-right corner (or lower-right corner) of the Windows desktop to show the Windows 8 toolbar, also known as "Charm Bar" and select Settings.
- *You can also press the Windows Key-C, or swipe from the right end of the screen if you are using touchscreen.
STEP2

Charm bar

Select Control Panel.
STEP3

Network and Internet

Select Network and Internet.

Select Network and Sharing Center.
STEP4

Network and Sharing Center

Select Set up a new connection or network.
STEP5

Set up a new connection or network

Select Connect to the Internet and click Next.

Select the Broadband (PPPoE) option.

STEP6

Connect to the Internet

Type the information from your Internet service provider

User Name	Asahi Net ID@atson.net Example: ab4t-ash@atson.net
Password	Password which corresponds to the above Asahi Net ID. (lowercase letters, numbers and symbols)
Connection name	Any name Example: ASAHI net

When you enter the above information, click Connect.

STEP7

Connect to the Internet

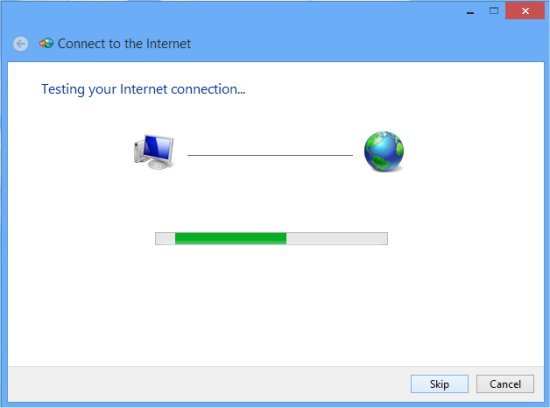

Connection should be established between your computer and the internet.

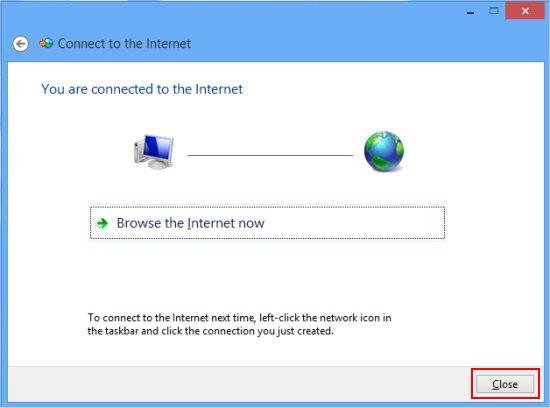

Connection is established when a message “You are connected to the Internet” is shown. Click Close to close the wizard.
